Product Overview

ZDM BAFJ Floor Armored Joint System is a high-precision floor expansion joint solution engineered in strict accordance with the UK Concrete Society TR34 (4th Edition) standard. Specifically designed for super-flat concrete floors, it provides reliable load transfer performance and long-term durability in demanding industrial environments.

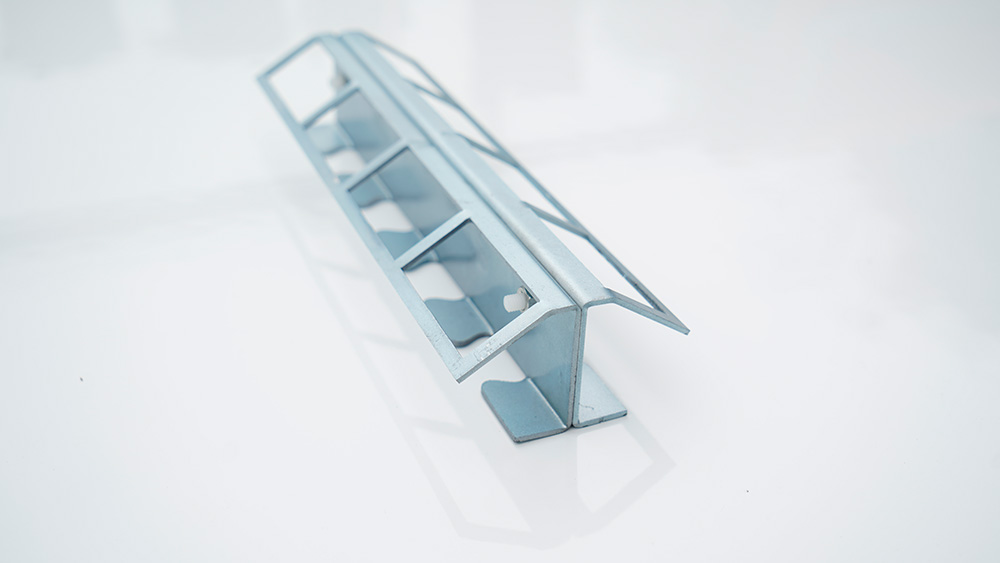

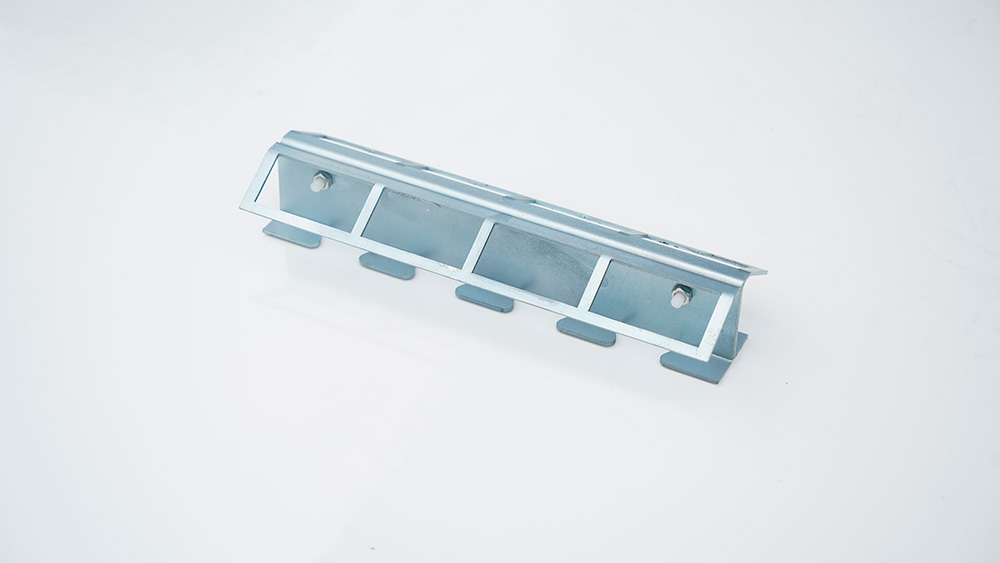

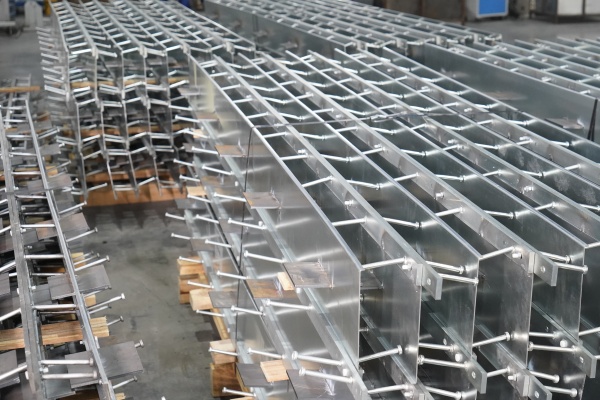

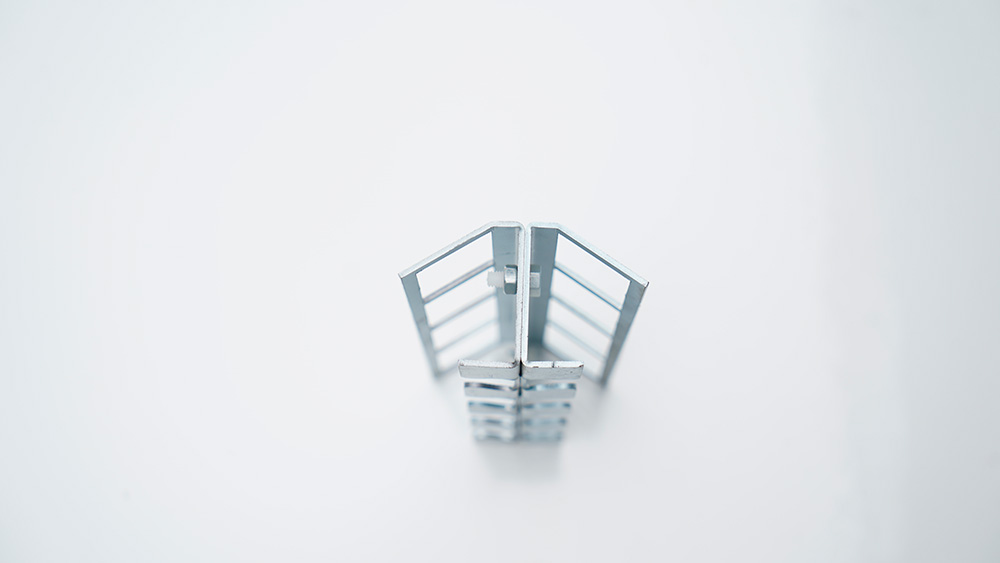

The BAFJ Armour Joint system for industrial concrete flooring consists of profiled steel plates, load transfer plates (dowel plates), debonding sleeves for controlled movement, and sacrificial plastic bolts, forming a complete and integrated joint system.

The joint-forming steel plates are typically manufactured from 2–3 mm thick galvanized steel or stainless steel, and are precision-punched and cold-formed to combine multiple functions into one system, including:

• Construction joint forming and control
• Effective load transfer between adjacent slabs
• Edge protection for concrete arrises
• Permanent formwork during concrete placement

Once installed, the BAFJ system allows adjacent concrete slab panels to expand and contract freely in both longitudinal and transverse directions, significantly reducing internal stress and preventing uncontrolled cracking.

The BAFJ type is particularly suitable for medium-duty to heavy-duty industrial flooring applications, such as warehouses, logistics centers, manufacturing plants, and high-load concrete slab systems.

Technical Specifications

The BAFJ system is available in multiple configurations to match different slab thickness requirements:

AFJ Type	Expansion joint height H(mm)	Types of Dowel Plates	Dowel Plate Spacing C/C(mm)	Length L(mm)	Floor Thickness (mm)
BAFJ6-90-3000	90	FJD6	500	3000	100-120
BAFJ6-115-3000	115	FJD6	500	3000	120-145
BAFJ6-135-3000	135	FJD6	500	3000	145-170
BAFJ6-160-3000	160	FJD6	500	3000	170-195
BAFJ6-185-3000	185	FJD6	500	3000	195-225
BAFJ6-215-3000	215	FJD6	600	3000	225-250
BAFJ6-230-3000	230	FJD6	600	3000	245-270
BAFJ6-245-3000	245	FJD6	600	3000	260-300

Applications

The BAFJ Floor Armored Joint System is designed for high-performance industrial environments where durability, load capacity, and crack control are critical. It is widely used in the following applications:

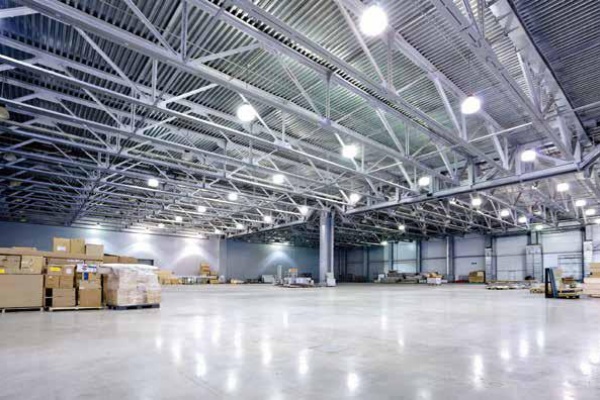

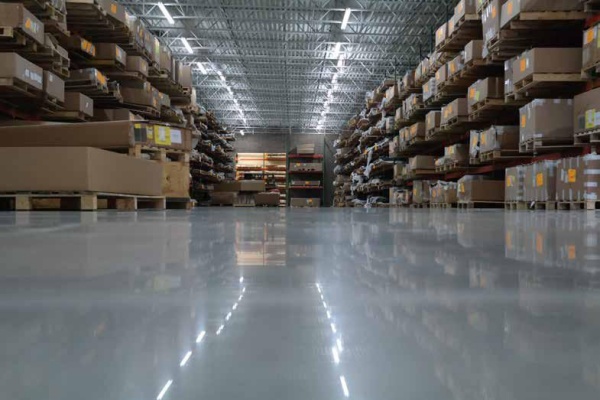

• Heavy-Duty Warehouses
  Designed to withstand frequent forklift traffic and high point loads.
• Airport Aprons & Aircraft Hangars
  Suitable for large-area concrete slabs requiring high flatness and structural stability.
• Truck Loading & Unloading Areas
  Provides strong edge protection against repeated impact and heavy vehicle movement.
• Manufacturing Facilities
  Ideal for factories with heavy machinery and dynamic load conditions.

Product Advantages

• High Crack Resistance
  Effectively controls shrinkage and thermal cracking, ensuring long-term slab integrity.
• Superior Flatness
  Designed for super-flat floors, meeting high standards required for automated warehouses and precision operations.
• Flexible Installation
  Easy to install and adaptable to various slab designs and construction conditions.
• Low Maintenance Cost
  Minimizes repair frequency and reduces lifecycle maintenance expenses.
• High Durability
  Manufactured from high-quality steel materials, ensuring long service life even under heavy loads.
• Excellent Load Transfer Performance
  Dowel plate system ensures efficient load distribution between adjacent slabs, reducing differential settlement.
• Enhanced Edge Protection
  Protects slab edges from damage caused by forklifts and heavy traffic.
• Controlled Movement Capability
  Allows expansion and contraction in both directions, preventing stress buildup.
• Integrated System Design
  Combines joint forming, load transfer, and formwork into one efficient solution.

Why Choose BAFJ Floor Armored Joint System

• Engineered for High-Performance Floors Specifically designed for super-flat and heavy-duty concrete flooring, ensuring reliable performance in demanding industrial environments.
• Compliant with International Standards Manufactured in accordance with TR34 (4th Edition), meeting global requirements for flatness, load transfer, and durability.
• Excellent Load Transfer Efficiency Integrated dowel plate system ensures smooth load distribution across joints, reducing differential settlement and extending floor lifespan.
• Superior Crack Control Allows controlled movement of concrete slabs, effectively minimizing random cracking caused by shrinkage and temperature changes.
• Strong Edge Protection Reinforced steel profiles protect slab edges from damage caused by forklifts and heavy equipment.
• Durable & Long Service Life Made from high-quality galvanized or stainless steel, providing excellent resistance to wear, corrosion, and impact.
• Easy Installation & Cost Efficiency Combines joint forming, load transfer, and formwork into one system, reducing installation time and overall project cost.
• Widely Trusted in Industrial Applications Proven performance in warehouses, logistics centers, factories, and other high-load flooring projects.
